Product elements:Extremely low NOx emissions, below 30mg/Nm3Ignition and operati

Product elements:

Extremely low NOx emissions, below 30mg/Nm3

Ignition and operational reliability

Low emissions can still be achieved under unfavorable conditions

Operate in accordance with the requirements of standard diffusion flame burners

Suitable for renovation projects and first-time installation of equipment

Technical data:

DS68/EFGR150/350÷860kWDS310/EFGR500/1350÷3800kW

DS120/EFGR300/600÷1300kWDS410/EFGR950/1830÷4590kW

DS160/EFGR300/930÷1860kWDS510/EFGR1000/2500÷5170kW

DS200/EFGR570/1375÷2400kWDS610/EFGR1410/3000÷6500kW

DS800/EFGR1200/3500÷8100kW

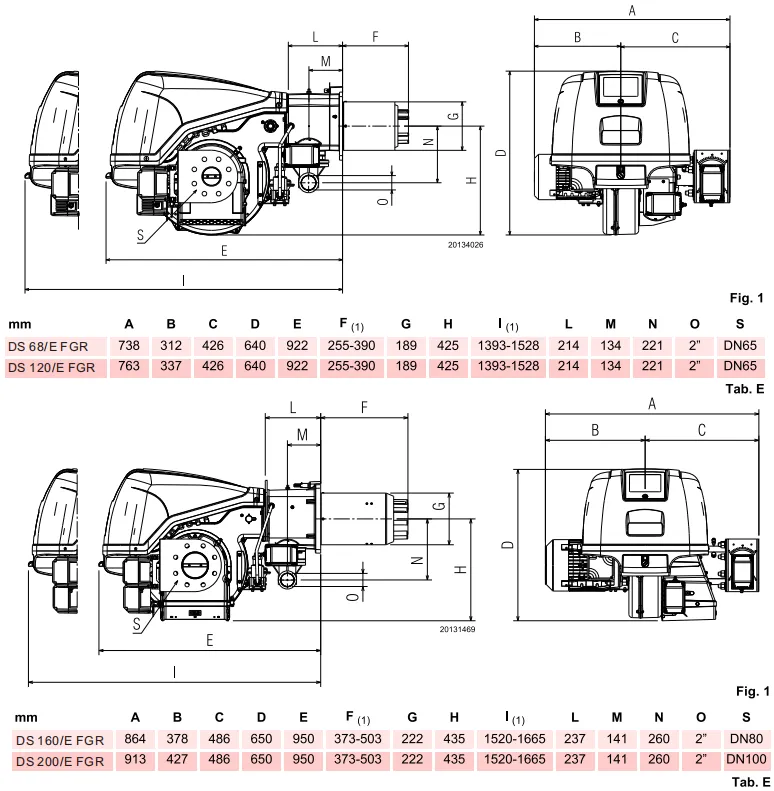

Overall dimensions:

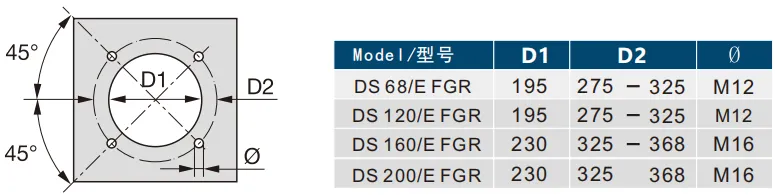

Boiler and burner connection flange:
